ECO Boiler Control Spares
ECO Boiler Control Spares
If you would like to purchase a product that is unavailable please contact us for an up to date price.

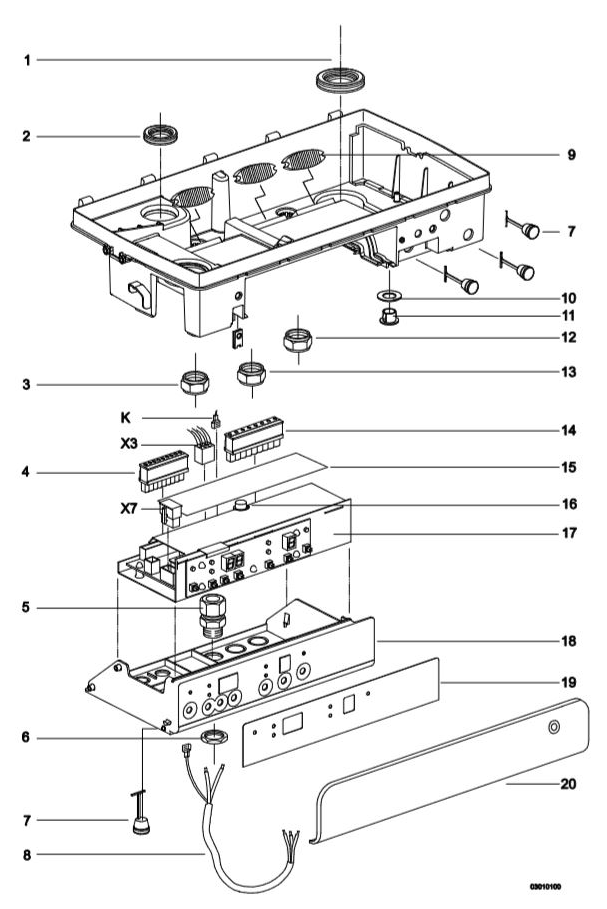

1 - Grommet Pump - 878557
2 - Grommet Flow Pipe - 878287
3 - Nut Red - 826087
4 - Connector 9 Pins 5mm 24V - 260427
5 - Cable Support Nut M16x1.5 - 260467
6 - Nut M16x1.5 - 260457
7 - Cap (6 Per Boiler) - 490097
8 - Power Cord - 221637
9 - Cable Transfer Sleeve (3 Per Boiler) - 878567
10 - Gasket - 876207
11 - Drain - 866147
12 - Nut Blue - 826077
13 - Nut Yellow - 826097
14 - Connector 8 Pins 7.5mm 230V - 260417
15 - Sticker Electrical Connections - 886807
16 - Fuse F1 3.15 A-T - 240307
18 - Casing Boiler Controller - 845367
19 - Display Sticker ECO RF 24 - 885607
19 - Display Sticker ECO RF 30 - 885617
19 - Display Sticker ECO RF 36 - 885627
20 - Display Venster ECO RF - 843967
